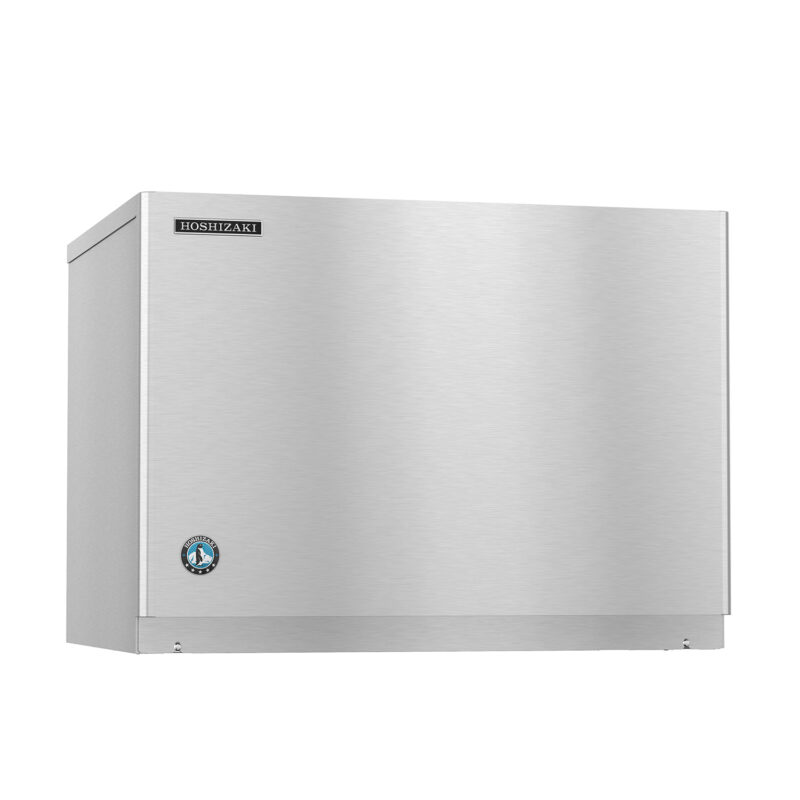

Hoshizaki KMD-530MRJZ 498 lb Remote-Cooled Crescent Cuber Ice Machine Head

No. It is a modular ice machine head only. You pair it with a Hoshizaki storage bin or beverage dispenser, sold separately. Compatible models include the B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, and B-1300. A top kit may be required depending on the bin.

Remote-cooled means the condenser sits away from the ice head, typically outside or on the roof, so the heat and noise stay out of your service area. This model is matched to the URC-5FZ remote condenser, which is sold separately, plus a brazed line set (available in 25 ft and 35 ft).

Up to 498 lbs of crescent cubes per 24 hours at 70/50 conditions, and 440 lbs AHRI certified at the warmer 90/70 conditions. You can mount two units side by side to double daily output.

It runs on 115V/60/1 single phase, draws 12.4 amps, and needs a 20A max fuse or HACR breaker. It must be hardwired at the site with 3-wire including ground; there is no cord or plug. Plumbing needs a minimum 1/4″ ID copper water supply line and a minimum 3/4″ ID drain line.

Hoshizaki backs the KMD-530MRJZ with 3 years parts and labor on the entire machine, 5 years parts and labor on the evaporator, and 5 years parts on the compressor and condenser coil, valid in the United States, Canada, Puerto Rico, and U.S. Territories.

We ship the KMD-530MRJZ fast, nationwide, covered by our best price guarantee. Garland-area pickup is also available.
