Turbo Air

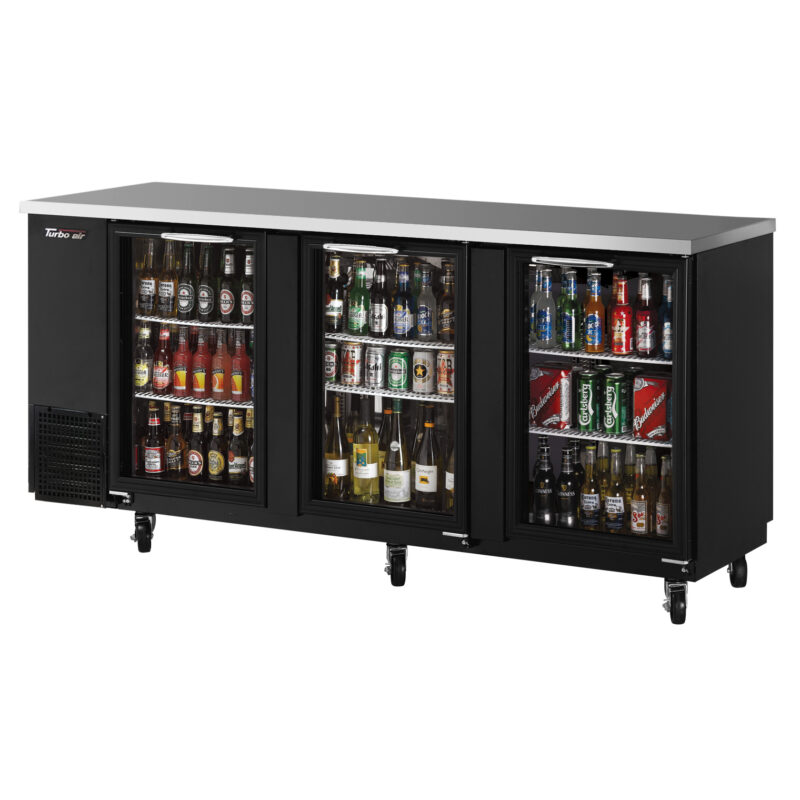

Turbo Air TBB-24-72SGD-N 3-Glass-Door Narrow Back Bar Cooler

Name: Turbo Air TBB-24-72SGD-N Back Bar Cooler | RHQ
Brand: Turbo Air
SKU: TBB-24-72SGD-N
Price: 5290.00 USD
Availability: InStock

Be the first to review

$5,290.00

In Stock SKU: TBB-24-72SGD-N

Best for high-volume bars and restaurants that need bottle-and-can cooling under a 73-inch back bar. The Turbo Air TBB-24-72SGD-N is a 3-section, 3-glass-door narrow back bar cooler holding 20.62 cu. ft. at 33 to 38 F, with an R-290 side-mount compressor and a stainless steel top.

Ships nationwide Best Price Guarantee Expert support

Financing available — flexible payment options for your business. Learn more

Save to Wishlist Compare Request a bulk quote

Secure checkout

Easy returns

Price match

(972) 487-8888

Three-section glass-door back bar cooler

Keep three doors of bottles and cans frost-cold under a 73-inch bar

The Turbo Air TBB-24-72SGD-N packs 20.62 cu. ft. of merchandised, beverage-ready cooling into a narrow 24-1/2-inch-deep cabinet, with three Low-E glass doors and an eco-friendly R-290 compressor.

20.62cu. ft. capacity

33 to 38 Fbeverage holding range

5-Yearparts and labor warranty

Best for

Bars, nightclubs, and restaurants that want three doors of glass-front bottle and can storage in a shallow 24-1/2-inch footprint that tucks neatly under a back bar.

Why the TBB-24-72SGD-N wins behind the bar

20.62 cu. ft. across three glass doorsSix PE-coated adjustable wire shelves and three self-closing Low-E glass doors merchandise bottles and cans while holding 33 to 38 F throughout the cabinet.

R-290 side-mount coolingA 1/3 HP self-contained, side-mount compressor with forced-air cooling and eco-friendly R-290 hydrocarbon refrigerant (ODP-0, GWP-3) keeps temperatures balanced and lets you service the unit without pulling it out.

Easy-to-clean front air filterThe front-access air filter pulls out for a quick vacuum, and the front-breathing design fits tight back-bar spaces. A stainless steel top and black vinyl-coated exterior stand up to heavy bar use.

Certified and warrantiedcETLus listed, ETL-Sanitation certified, and ENERGY STAR qualified, backed by a 5-year parts and labor warranty plus a 7-year compressor warranty.

Specifications

Capacity & dimensions

Capacity	20.62 cu. ft.
Exterior (W x D x H)	73-1/8″ W x 24-1/2″ D x 35-3/8″ H
Doors	(3) self-closing Low-E double-pane glass doors with locks
Shelves	(6) PE-coated adjustable wire shelves

Cooling

Temperature range	33 F to 38 F
Compressor	1/3 HP, self-contained, side-mount, forced-air cooling, front breathing
Refrigerant	R-290 hydrocarbon (ODP-0, GWP-3)

Construction

Exterior	Stainless steel top, black vinyl-coated galvanized steel
Interior	Stainless steel (galvanized steel top), high-density polyurethane insulation
Lighting	LED interior lighting

Power

Electrical	115V / 60Hz / 1-phase, 2.9 amps
Plug	Cord with NEMA 5-15P

Certifications & warranty

Certifications	cETLus, ETL-Sanitation, ENERGY STAR
Warranty	5-year parts and labor, 7-year compressor

Buyer questions

How many bottles does the TBB-24-72SGD-N hold?

It offers 20.62 cu. ft. of refrigerated storage across three sections, with six PE-coated adjustable wire shelves so you can configure the layout for bottles, cans, or kegs of mixers.

How cold does it get?

The cabinet holds a beverage-ideal 33 F to 38 F using a 1/3 HP side-mount compressor with forced-air cooling for balanced temperatures from door to door.

What refrigerant does it use?

It runs on eco-friendly R-290 hydrocarbon refrigerant (ODP-0, GWP-3), which meets DOE energy standards and uses an EPA SNAP-approved refrigerant.

Will it fit under a standard back bar?

Yes. At 35-3/8″ tall and a narrow 24-1/2″ deep, it is built for back-bar placement, and the front-breathing design means it does not need side or rear clearance for airflow.

What electrical does it require?

It plugs into a standard 115V / 60Hz / 1-phase outlet, draws 2.9 amps, and ships with a cord and NEMA 5-15P plug.

Can I pick it up or have it shipped?

We ship the TBB-24-72SGD-N fast, nationwide, covered by our best price guarantee.

Weight	339 lbs
Dimensions	24.5 × 73.13 × 35.38 in
Capacity	20.62 cu. ft.
Type	Narrow back bar cooler, 3-section
Temperature Range	33 F to 38 F
Doors	(3) Low-E glass doors with locks
Shelves	(6) PE-coated adjustable wire shelves
Compressor	1/3 HP, self-contained, side-mount, forced-air
Refrigerant	R-290 hydrocarbon (ODP-0, GWP-3)
Material	Stainless steel top, black vinyl-coated galvanized exterior, stainless steel interior
Dimensions (W x D x H)	73-1/8" W x 24-1/2" D x 35-3/8" H
Voltage	115V / 60Hz / 1-phase, 2.9 amps
Plug	Cord with NEMA 5-15P
Certifications	cETLus, ETL-Sanitation, ENERGY STAR
Warranty	5-year parts and labor, 7-year compressor
Brand	Turbo Air
Manufacturer	Turbo Air

Shipping. Shipped nationwide; freight is calculated at checkout based on your location. Most in-stock equipment leaves our Garland, TX warehouse within 1–2 business days.

Returns. New, unused items can be returned. See our Returns & Refunds policy for full details.

Need it custom? Our Dallas shop fabricates custom stainless and full kitchens. Request a quote.
